Description

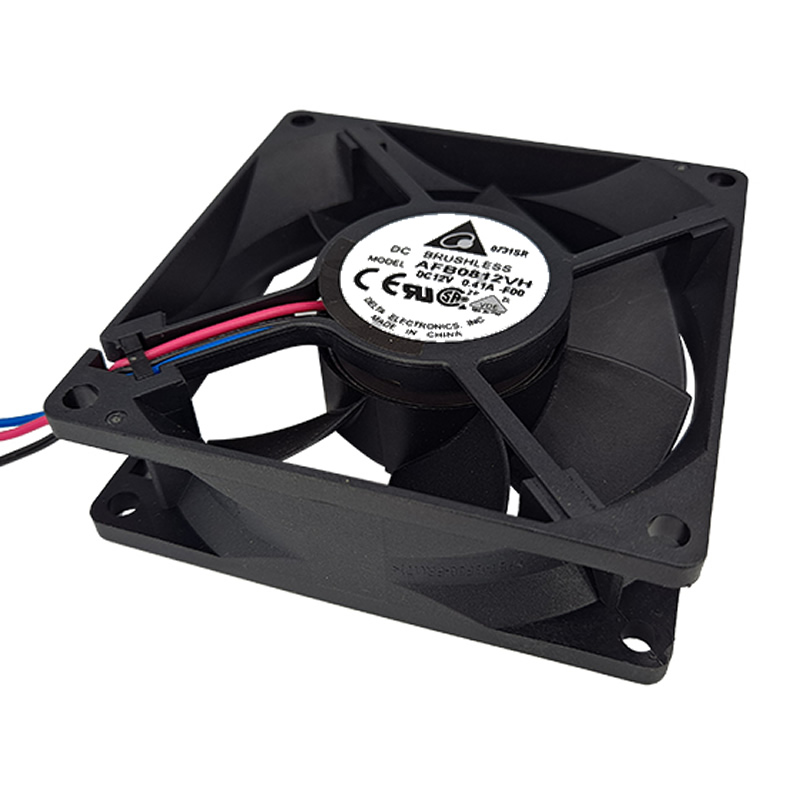

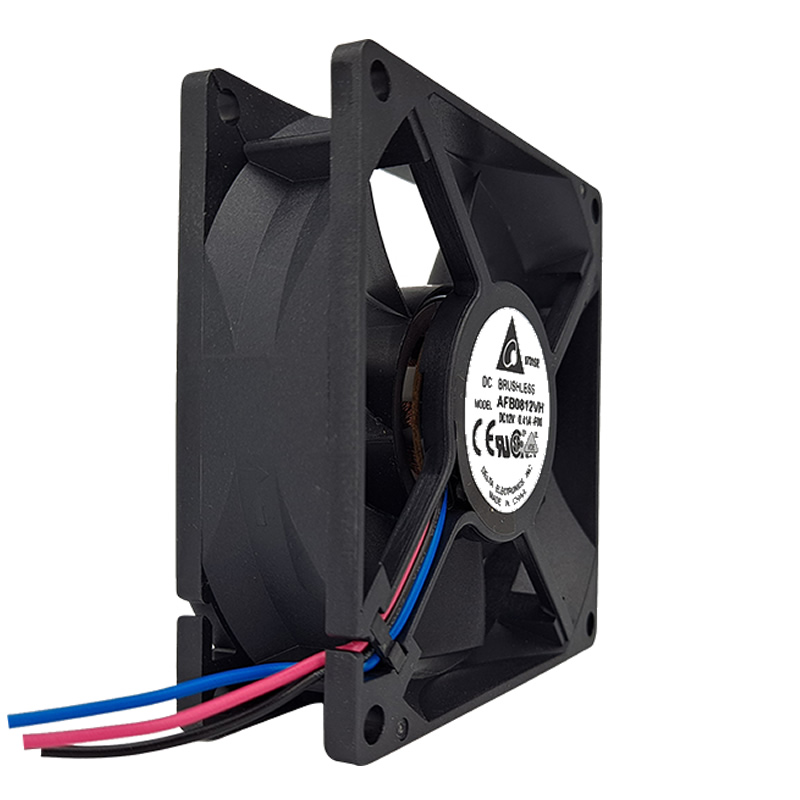

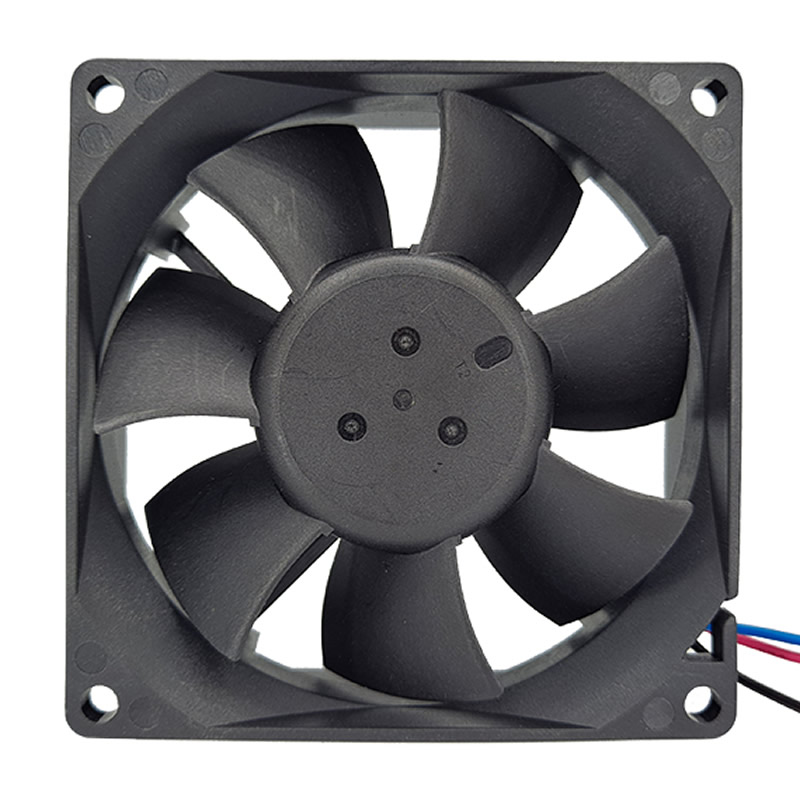

AFB0812VH-F00 Delta 80x80x25.40mm Ball 12VDC 42.02CFM(1.190m3/min) 0.217inchH2O(5.51mmH2O) 38.0dB(A) 3.12W 3600RPM 3wireleads
Specifications
| Part Number | AFB0812VH-F00 |
|---|---|
| Power Rating | 3.12 W |
| Material Frame | Plastic |
| Current Rating | 0.26 A |
| Category | Axial |
| Weight | 0.176 lb (80.00 g) |
| Bearing Type | Ball Bearing |
| Voltage Rating | 12 VDC |
| Air Flow | 42.02 CFM |
| Static Pressure | 0.217 inchH2O (5.51 mmH2O) |
| Noise Level | 38.0 dB(A) |
| Fan Speed | 3600 RPM |
| Fan Type | DC |
| Manufacturer | Delta Electronics |
| Termination | 3 wire leads |
| Dimensions | 80x80x25.40 mm |
| Air Flow (m3) | 1.190 m3/min |
| Series | AFB |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
