Description

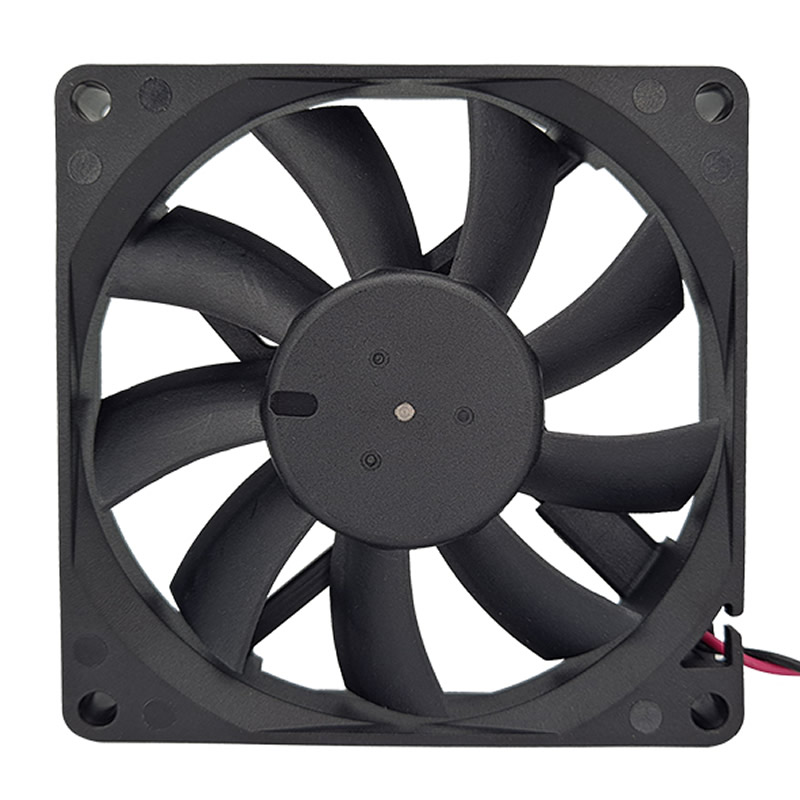

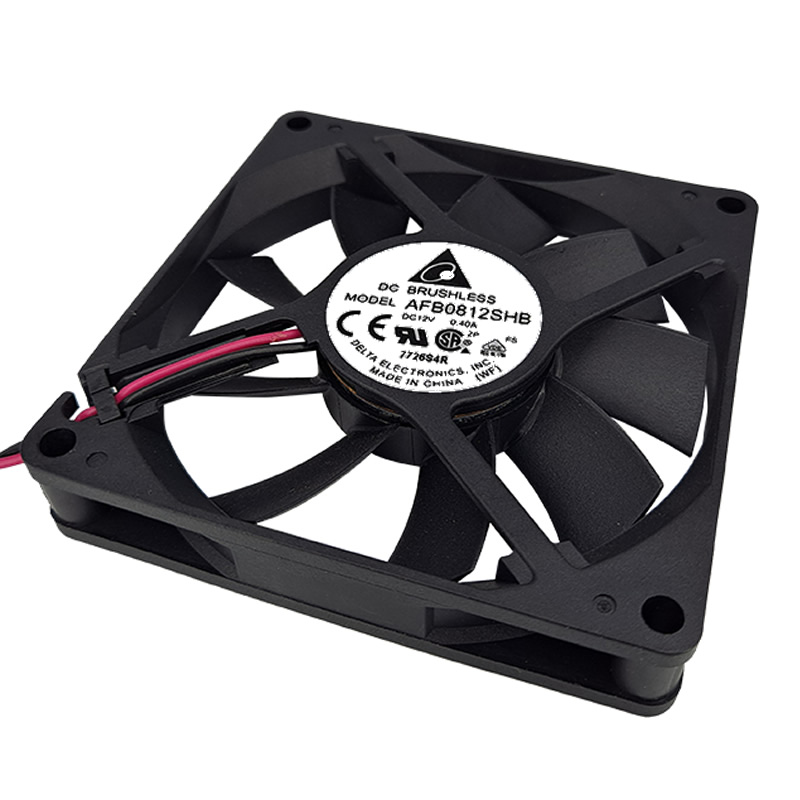

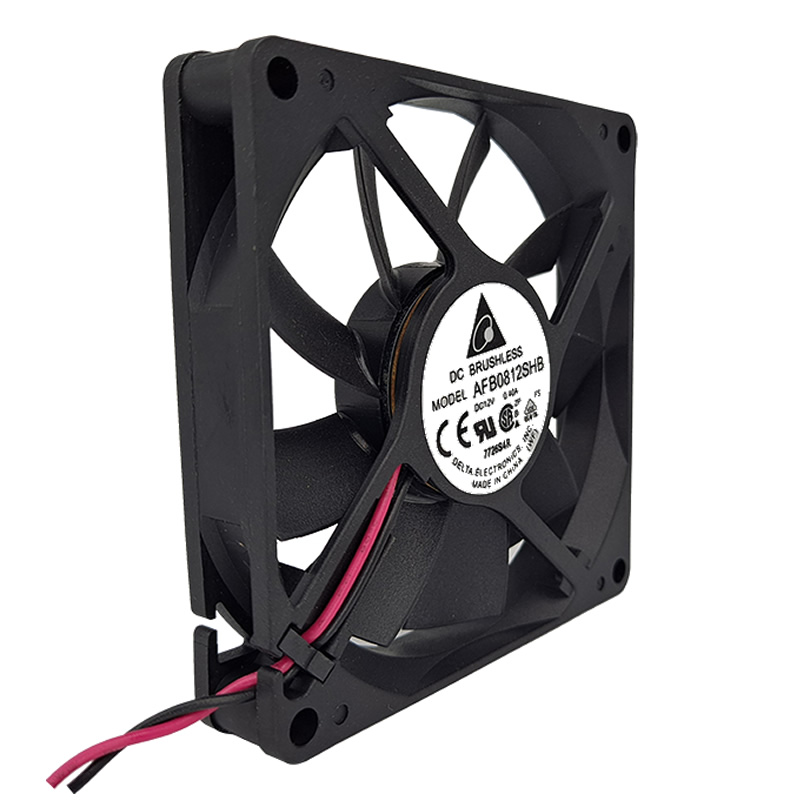

AFB0812SHB Delta 80x80x15mm Ball 12VDC 42.73CFM(1.210m3/min) 0.216inchH2O(5.49mmH2O) 42.5dB(A) 3.24W 2wireleads fan
Specifications
| Part Number | AFB0812SHB |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 3.24 W |
| Dimensions | 80x80x15 mm |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.210 m3/min |
| Termination | 2 wire leads |
| Fan Type | DC |
| Static Pressure | 0.216 inchH2O (5.49 mmH2O) |
| Noise Level | 42.5 dB(A) |
| Air Flow | 42.73 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.128 lb (58.06 g) |
| Category | Axial |
| Current Rating | 0.27 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
