Description

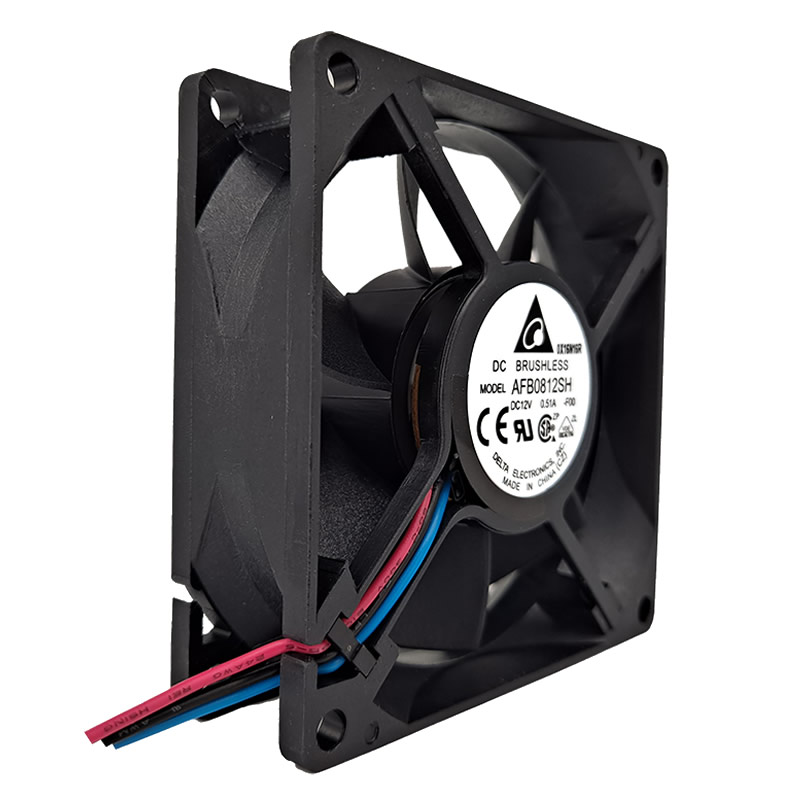

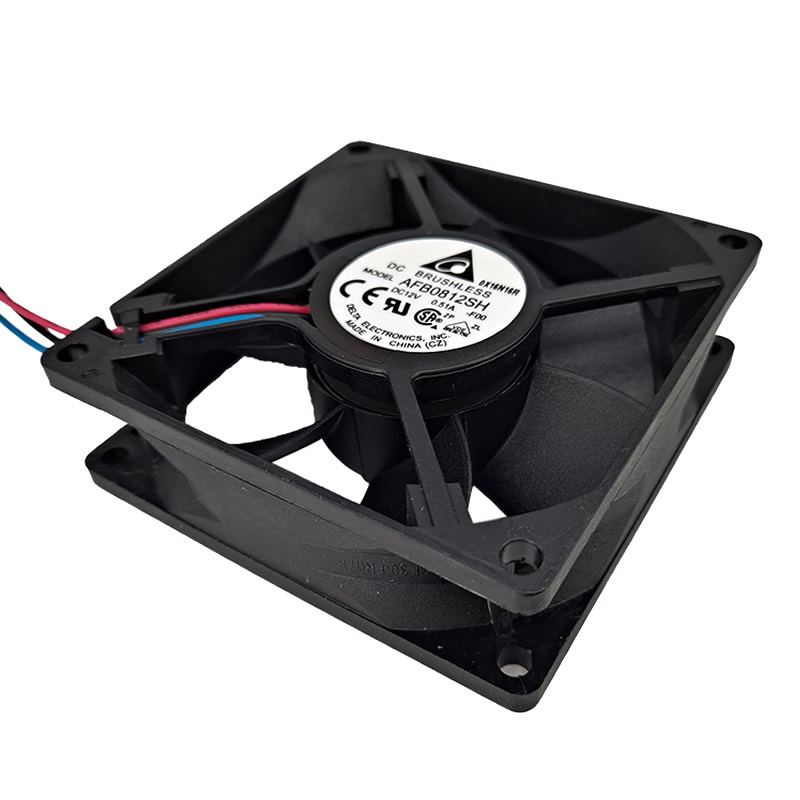

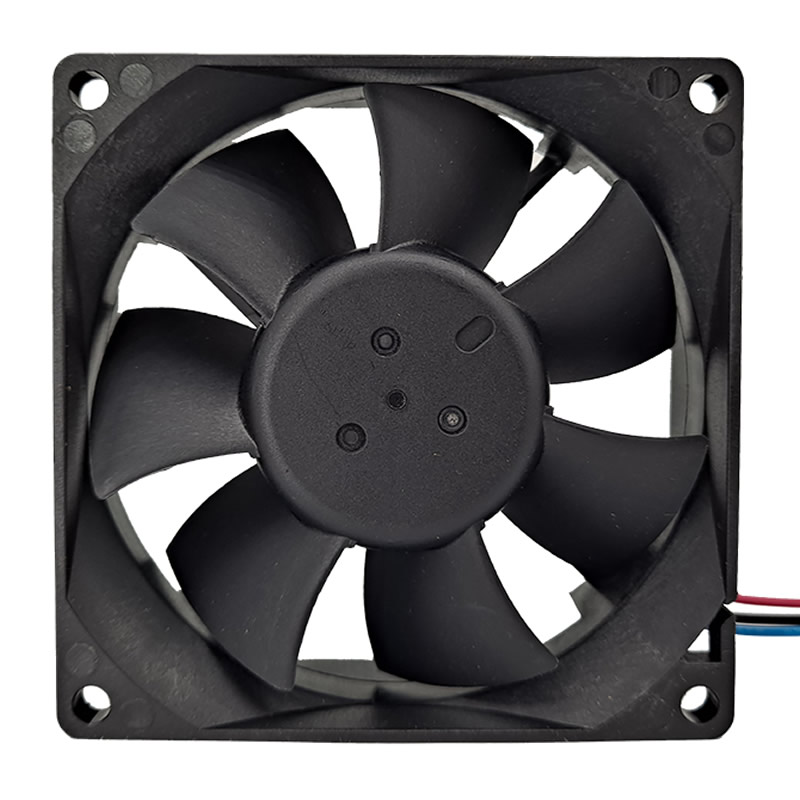

AFB0812SH-F00 Delta 80x80x25.40mm Ball 12VDC 46.62CFM(1.320m3/min) 0.267inchH2O(6.78mmH2O) 40.0dB(A) 4.08W 4000RPM 3 wire leads fan
Specifications
| Part Number | AFB0812SH-F00 |
|---|---|
| Termination | 3 wire leads |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | AFB |
| Air Flow (m3) | 1.320 m3/min |
| Dimensions | 80x80x25.40 mm |
| Fan Type | DC |
| Fan Speed | 4000 RPM |
| Manufacturer | Delta Electronics |
| Power Rating | 4.08 W |
| Noise Level | 40.0 dB(A) |
| Static Pressure | 0.267 inchH2O (6.78 mmH2O) |
| Air Flow | 46.62 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.176 lb (80.00 g) |
| Category | Axial |
| Current Rating | 0.34 A |
| Operating Voltage | 7 ~ 13 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
