Description

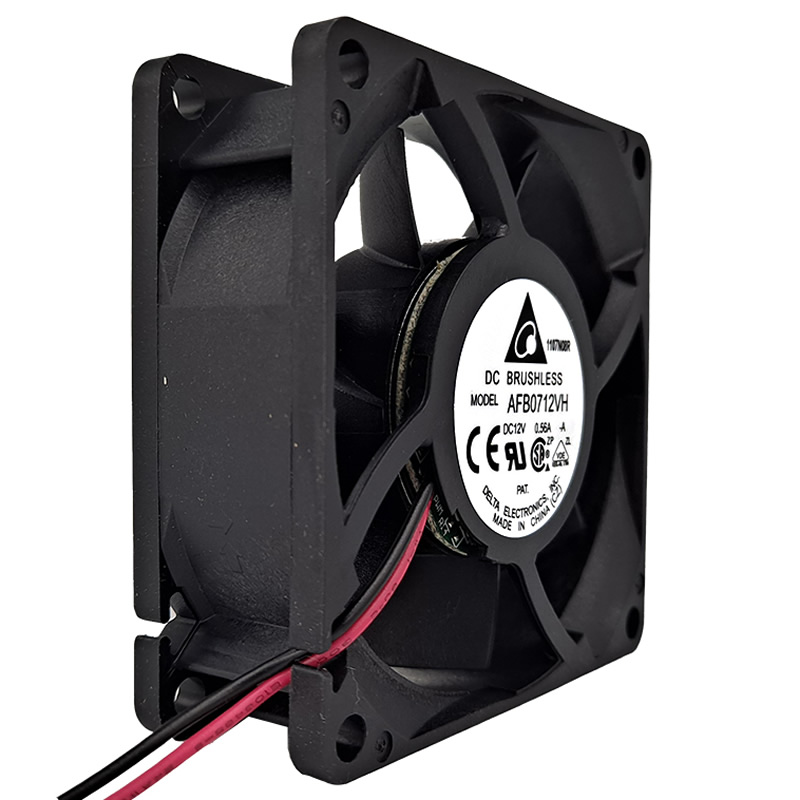

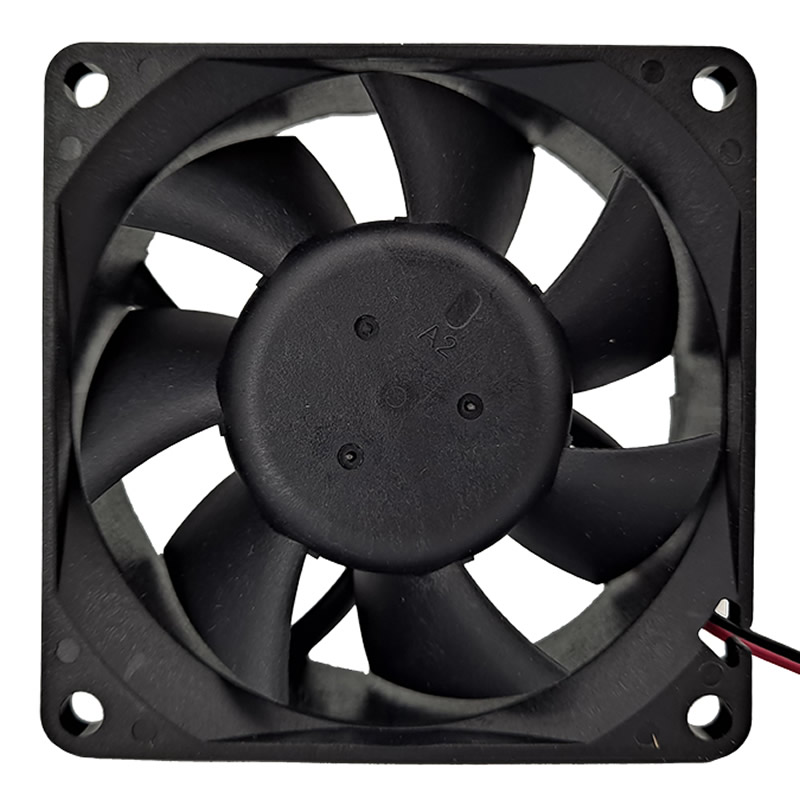

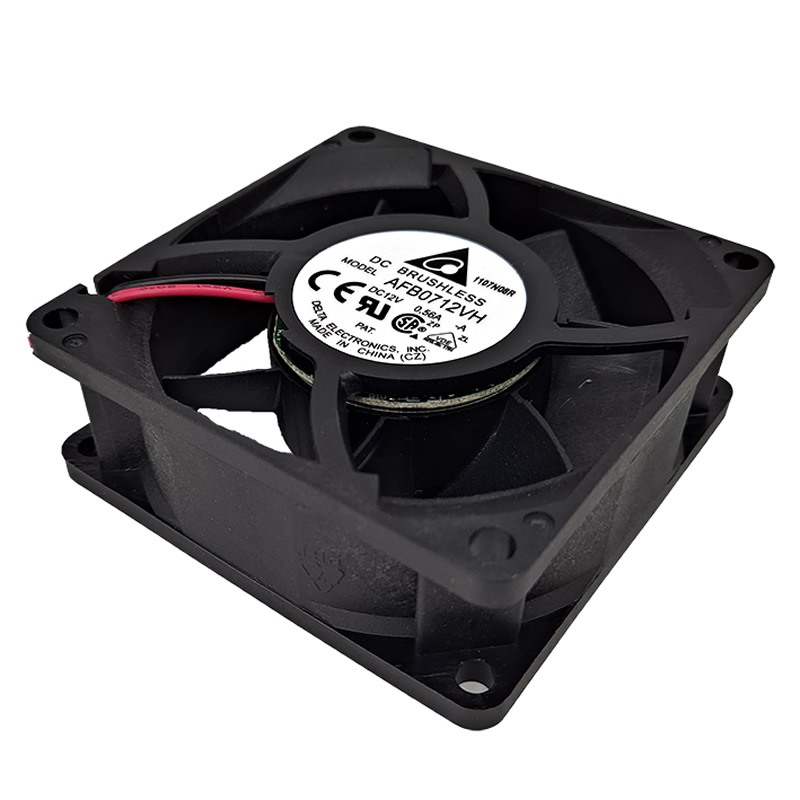

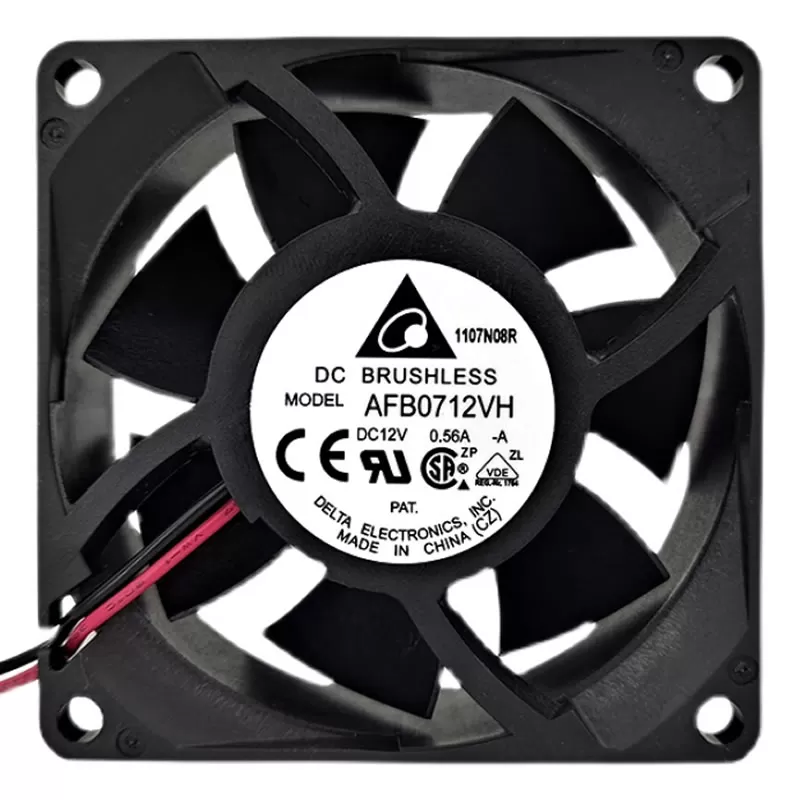

AFB0712VH-A Delta 70x70x25.40mm Ball 12VDC 51.97CFM(1.472m3/min) 0.433inchH2O(10.99mmH2O) 47.5dB(A) 5.28W 5500RPM 2wireleads
Specifications
| Part Number | AFB0712VH-A |
|---|---|
| Power Rating | 5.28 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.472 m3/min |
| Dimensions | 70x70x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 5500 RPM |
| Fan Type | DC |
| Static Pressure | 0.433 inchH2O (10.99 mmH2O) |
| Noise Level | 47.5 dB(A) |
| Air Flow | 51.97 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.199 lb (90.26 g) |
| Category | Axial |
| Current Rating | 0.44 A |
| Operating Voltage | 5 ~ 12.6 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
