Description

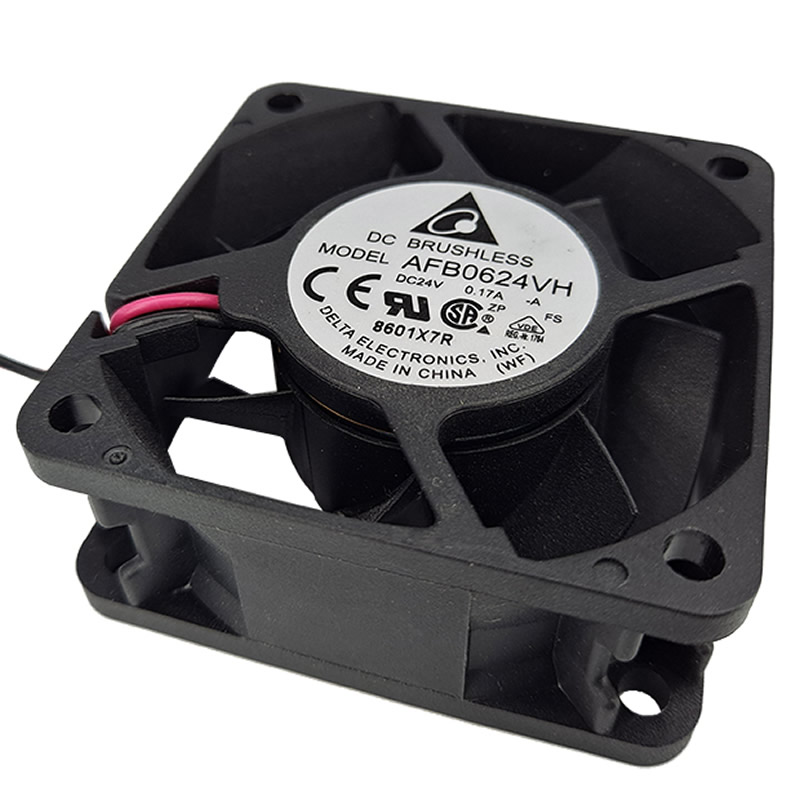

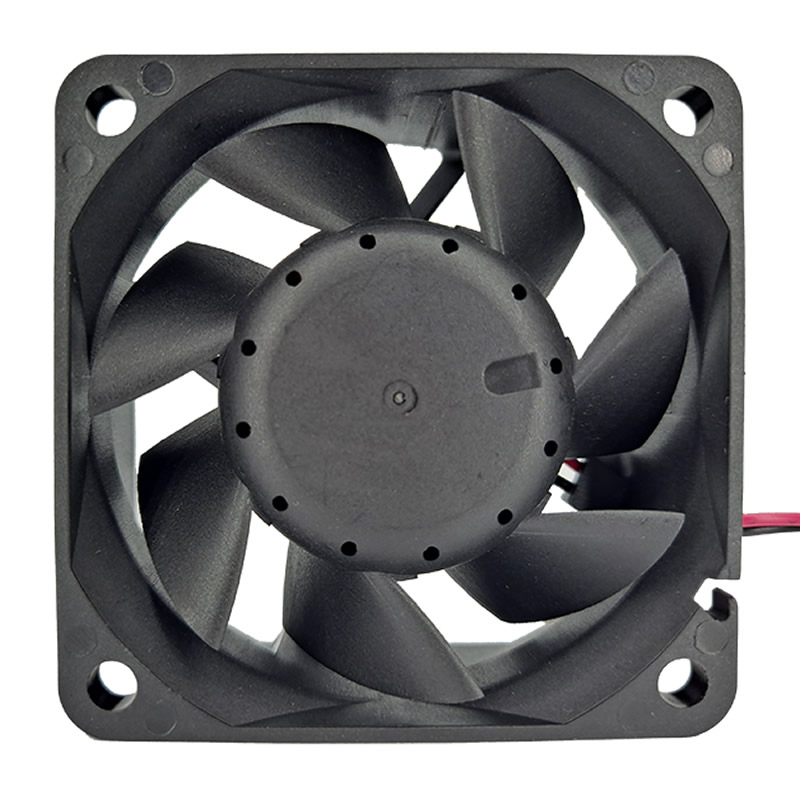

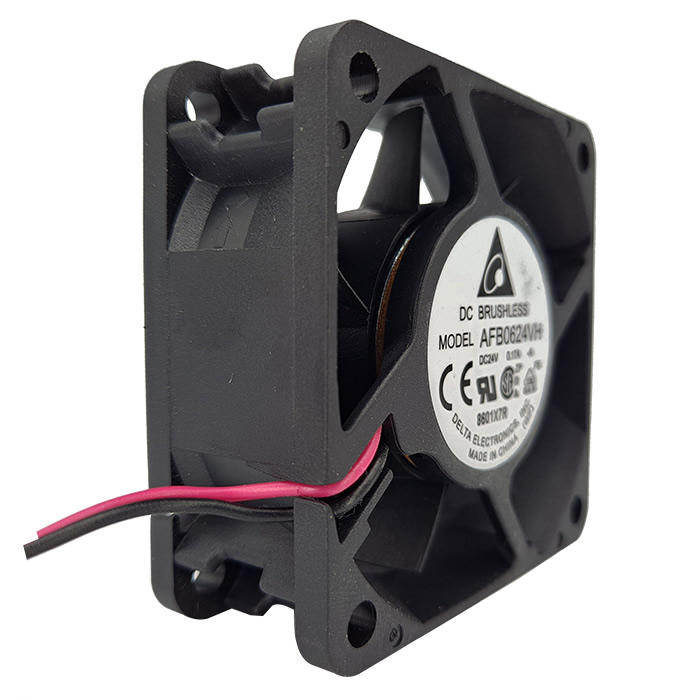

AFB0624VH-A Delta 60x60x25.40mm Ball 24VDC 30.48CFM(0.863m3/min) 0.345inchH2O(8.76mmH2O) 42.5dB(A) 3.36W 5500RPM 2wireleads
Specifications
| Part Number | AFB0624VH-A |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.863 m3/min |
| Dimensions | 60x60x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 5500 RPM |
| Power Rating | 3.36 W |
| Noise Level | 42.5 dB(A) |
| Static Pressure | 0.345 inchH2O (8.76mmH2O) |
| Air Flow | 30.48 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.176 lb (80.00 g) |
| Category | Axial |
| Current Rating | 0.14 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
