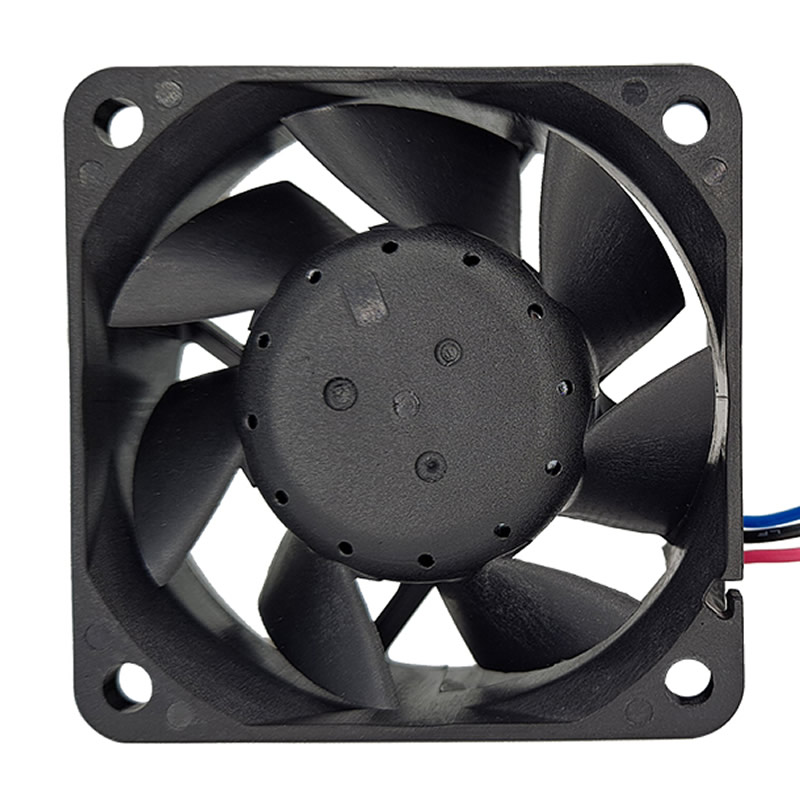

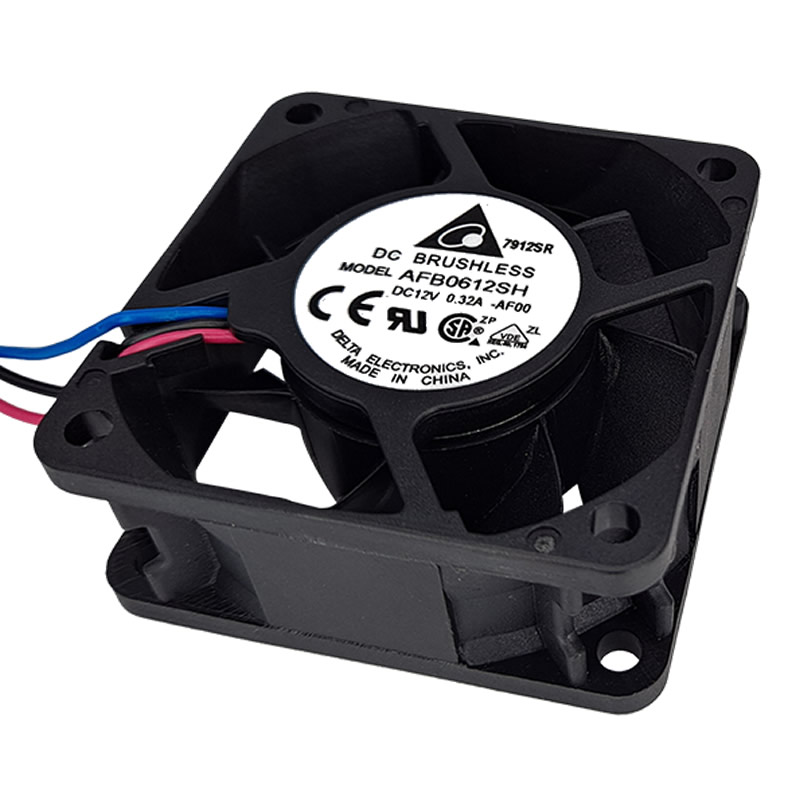

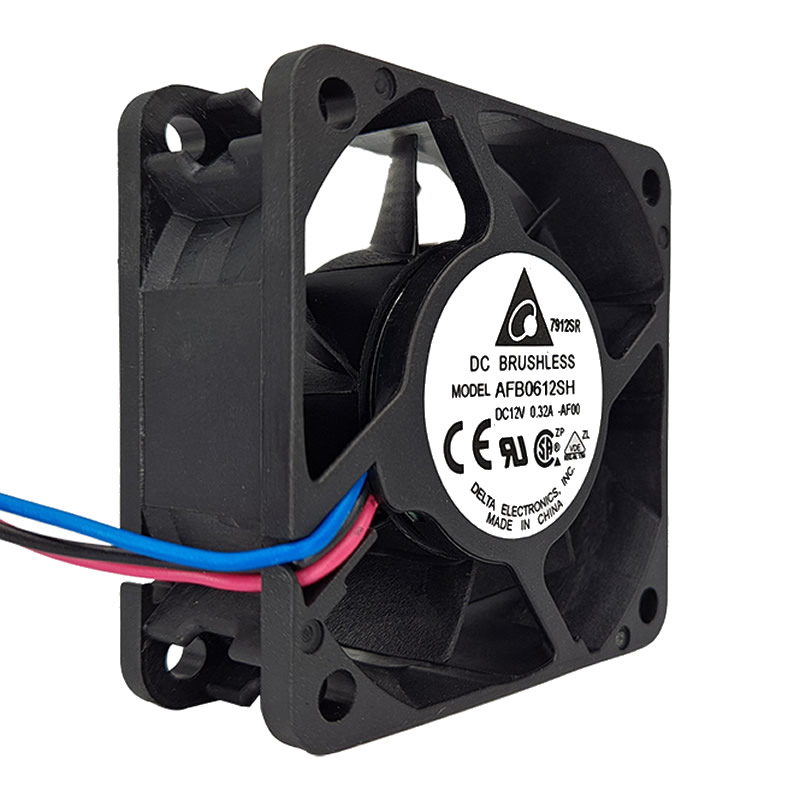

AFB0612SH-AF00 Delta

$18.26

Datesheet:AFB0612SH-AF00.pdf
SKU: AFB0612SH-AF00

Description

AFB0612SH-AF00 Delta 60x60x25.40mm Ball 12VDC 34.15CFM(0.967m3/min) 0.422inchH2O(10.73mmH2O) 44.5dB(A) 3.24W 6000RPM 3wireleads

Specifications

Part Number

AFB0612SH-AF00

Power Rating

3.24 W

Approval Agency

CE, CSA, UL, VDE

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Features

Locked Rotor Protection, Speed Sensor (Tach)

Series

AFB

Air Flow (m3)

0.967 m3/min

Dimensions

60x60x25.40 mm

Termination

3 wire leads

Manufacturer

Delta Electronics

Fan Speed

6000 RPM

Fan Type

DC

Static Pressure

0.422 inchH2O (10.73 mmH2O)

Noise Level

44.5 dB(A)

Air Flow

34.15 CFM

Voltage Rating

12 VDC

Bearing Type

Ball Bearing

Weight

0.176 lb (80.00 g)

Category

Axial

Current Rating

0.27 A

Operating Voltage

4 ~ 13.8 VDC

Material Frame

Plastic

Material Blade

Plastic

Lifetime @ Temp

70000 Hrs @ 40⁰C
