Description

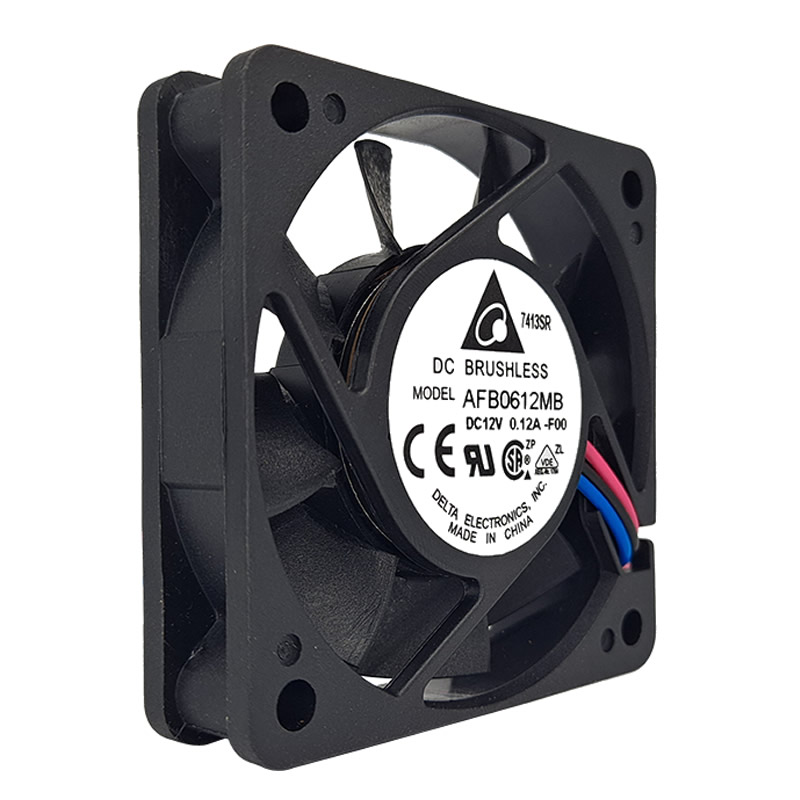

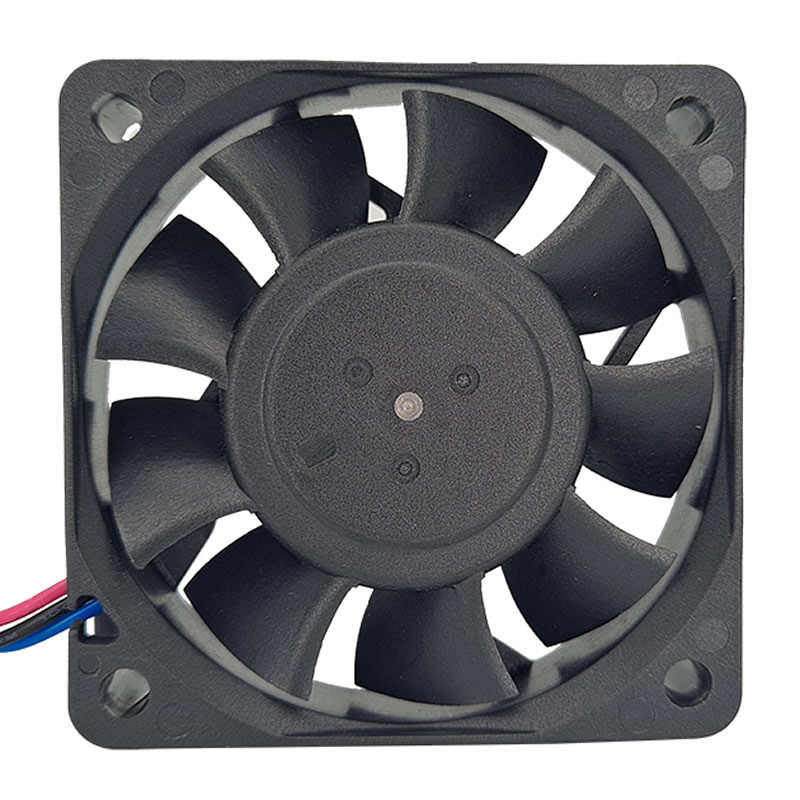

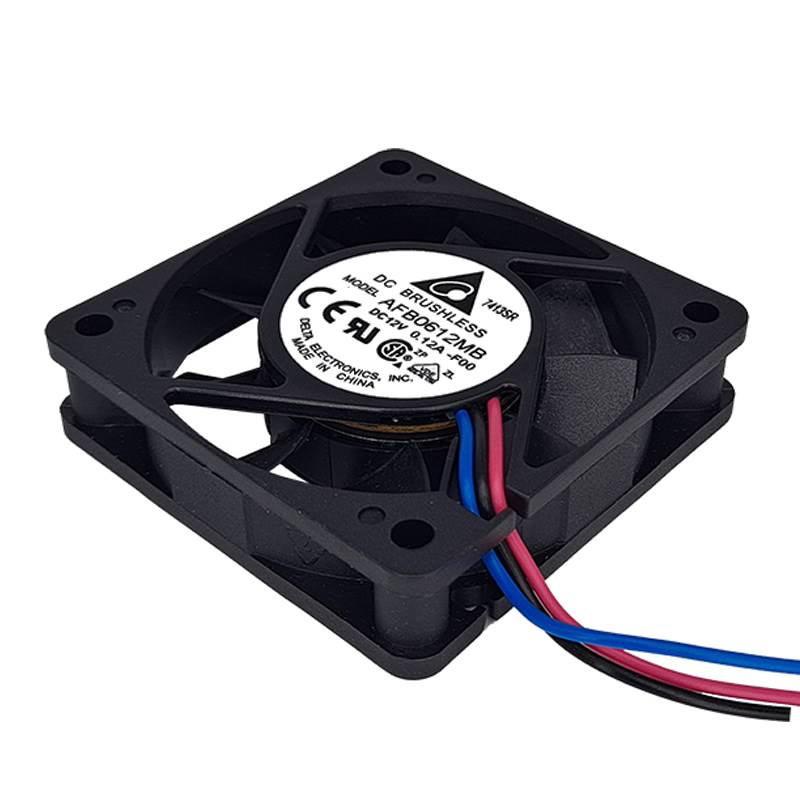

AFB0612MB-F00 Delta 12VDC 60x60x15mm 13.5CFM 0.119inH2O(29.6Pa) Ball 29dB(A) 960mW 3500RPM 3 Wire Leads Locked Rotor Protection, Speed Sensor (Tach) DC Fan
Specifications
| Part Number | AFB0612MB-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 60x60x15 mm |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Air Flow | 13.5 CFM |
| Air Flow (m3) | 0.378 m³/min |
| Static Pressure | 0.119 in H2O (29.6 Pa) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Fan Type | DC |
| Noise Level | 29 dB(A) |
| Power Rating | 960 mW |
| Fan Speed | 3500 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.098 lb (44.45 g) |
