Description

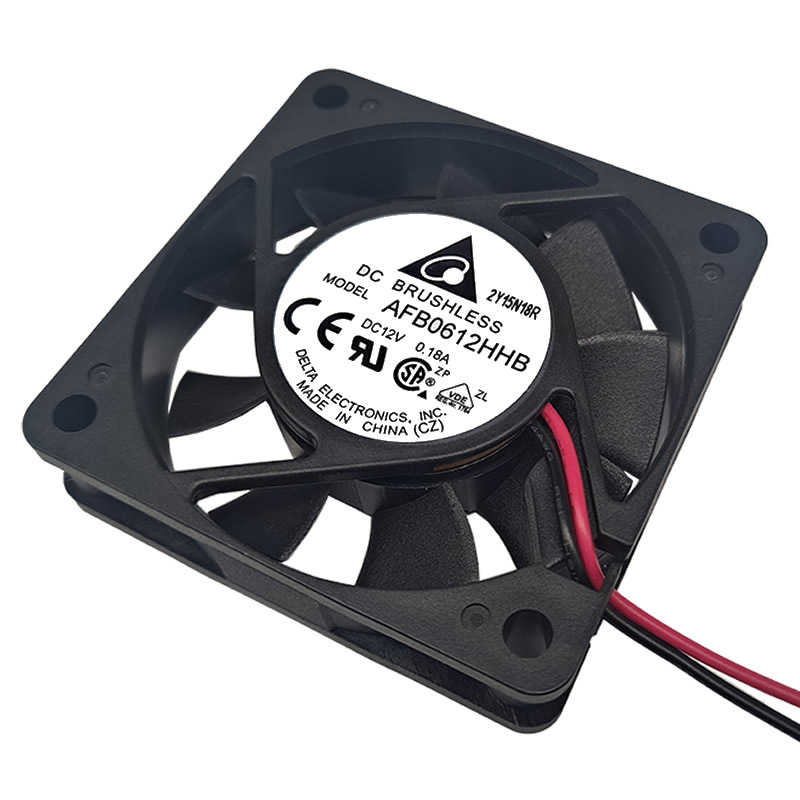

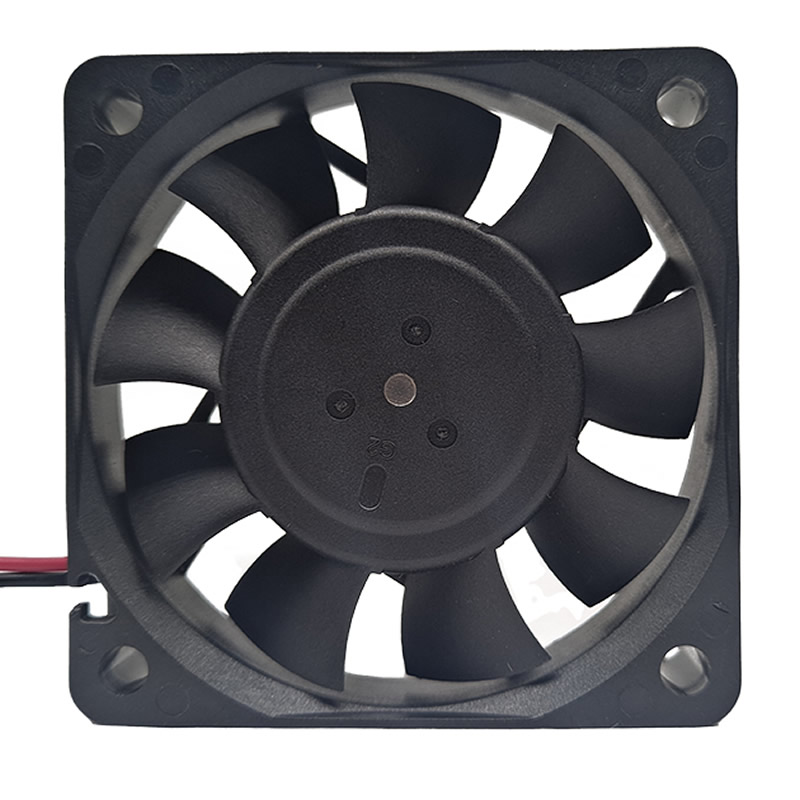

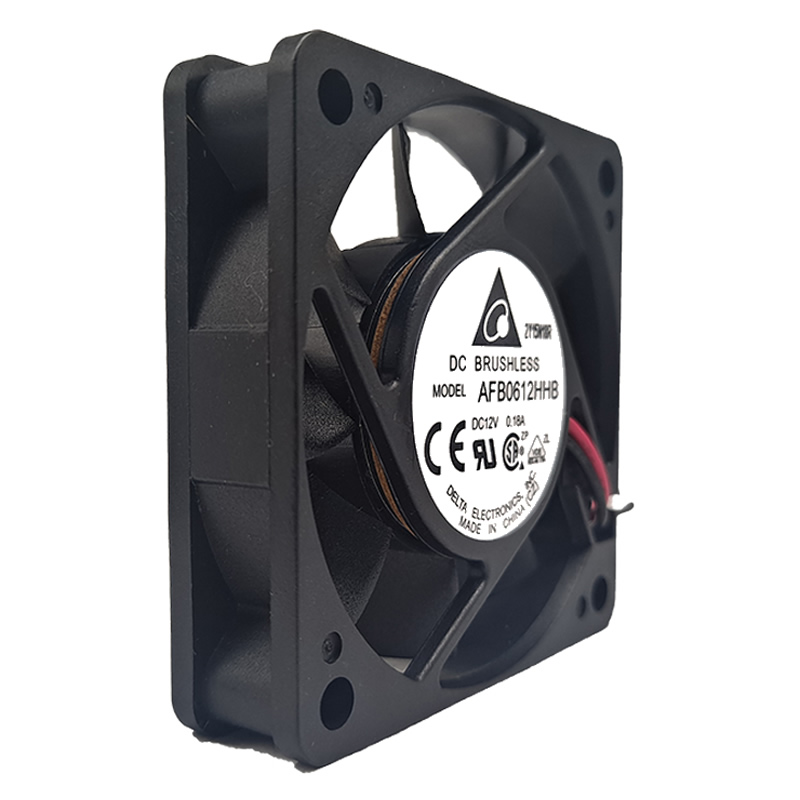

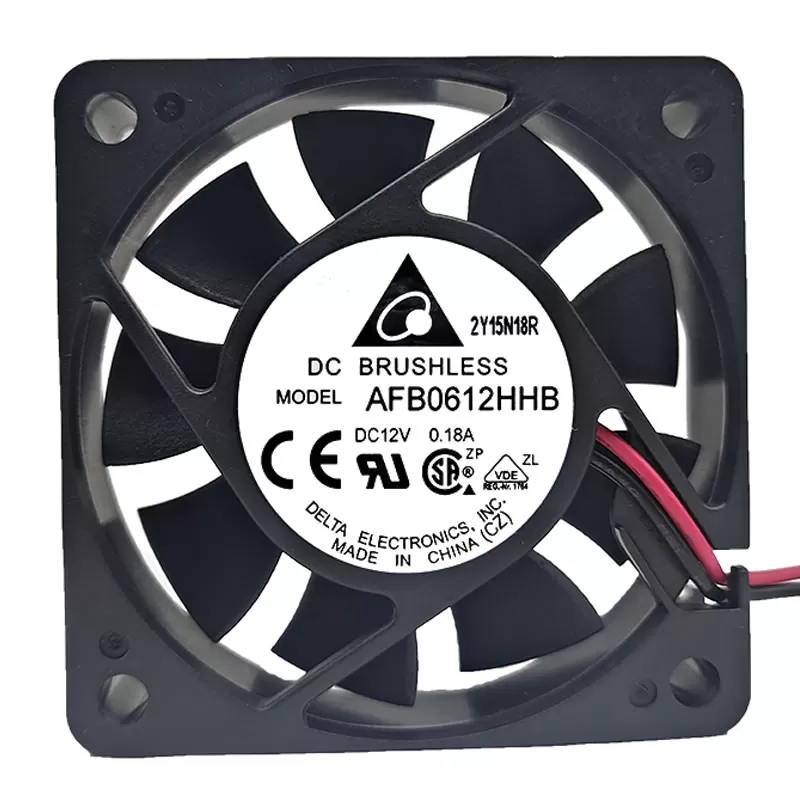

AFB0612HHB Delta 12VDC 60x60x15mm 17.3CFM 0.195inH2O(48.6Pa) Ball 35dB(A) 1.44W 4500RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0612HHB |
|---|---|
| Manufacturer | Delta Electronics |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 60x60x15 mm |
| Air Flow | 17.3 CFM |
| Air Flow (m3) | 0.484 m³/min |
| Static Pressure | 0.195 in H2O (48.6 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | Locked Rotor Protection |
| Noise Level | 35 dB(A) |
| Power Rating | 1.44 W |
| Fan Speed | 4500 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.098 lb (44.45 g) |
