Description

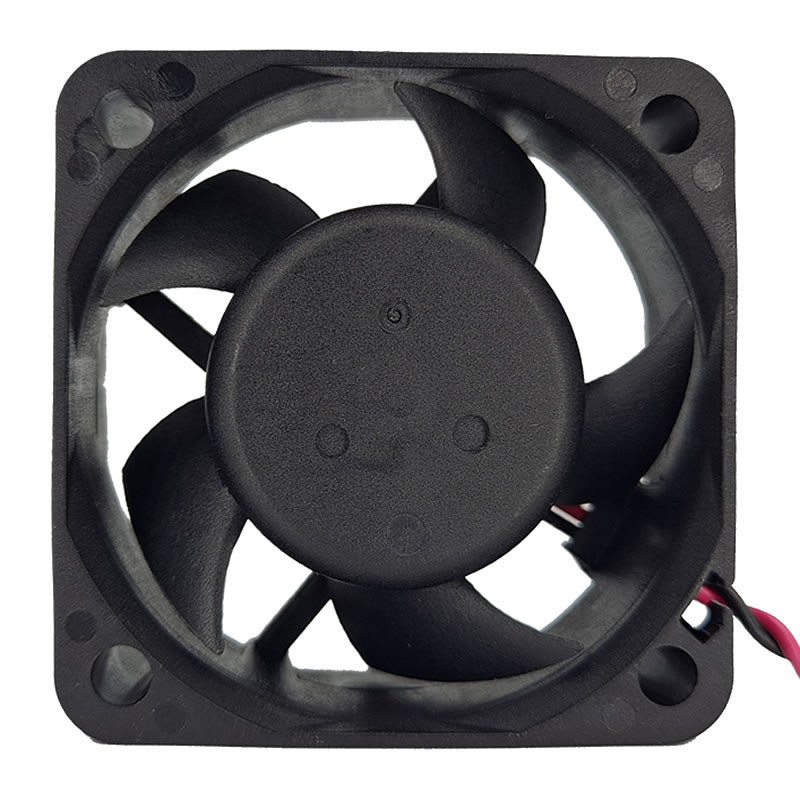

AFB0524VHD Delta 50x50x20mm Ball 24VDC 20.30CFM(0.575m3/min) 0.303inchH2O(7.70mmH2O) 40.5dB(A) 2.40W 7000RPM 2wireleads fan
Specifications
| Part Number | AFB0524VHD |
|---|---|
| Power Rating | 2.40 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.575 m3/min |
| Dimensions | 50x50x20 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 7000 RPM |
| Fan Type | DC |
| Static Pressure | 0.303 inchH2O (7.70 mmH2O) |
| Noise Level | 40.5 dB(A) |
| Air Flow | 20.30 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.085 lb (38.56 g) |
| Category | Axial |
| Current Rating | 0.10 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
