Description

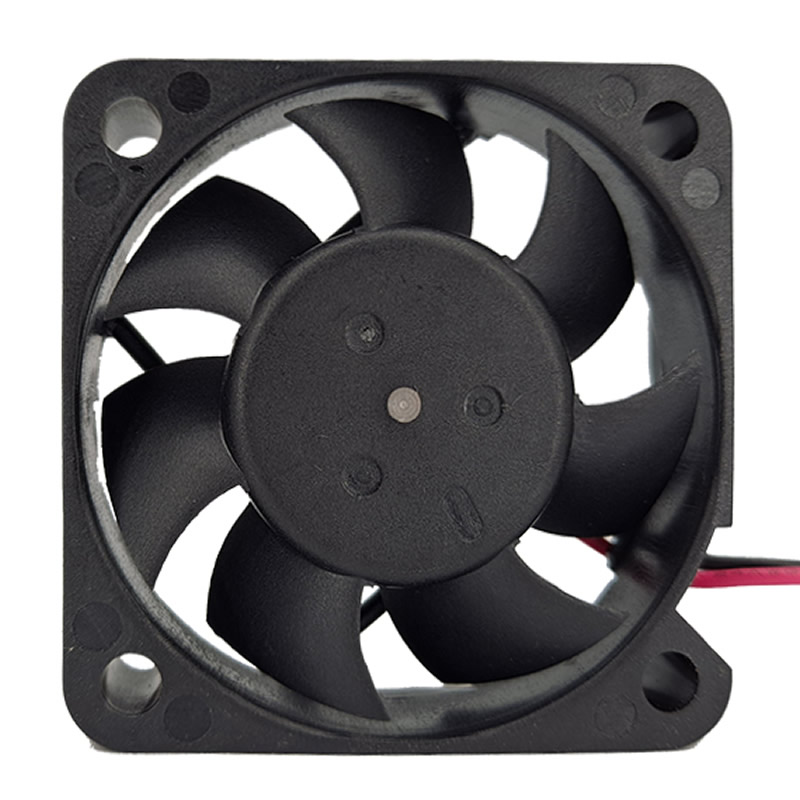

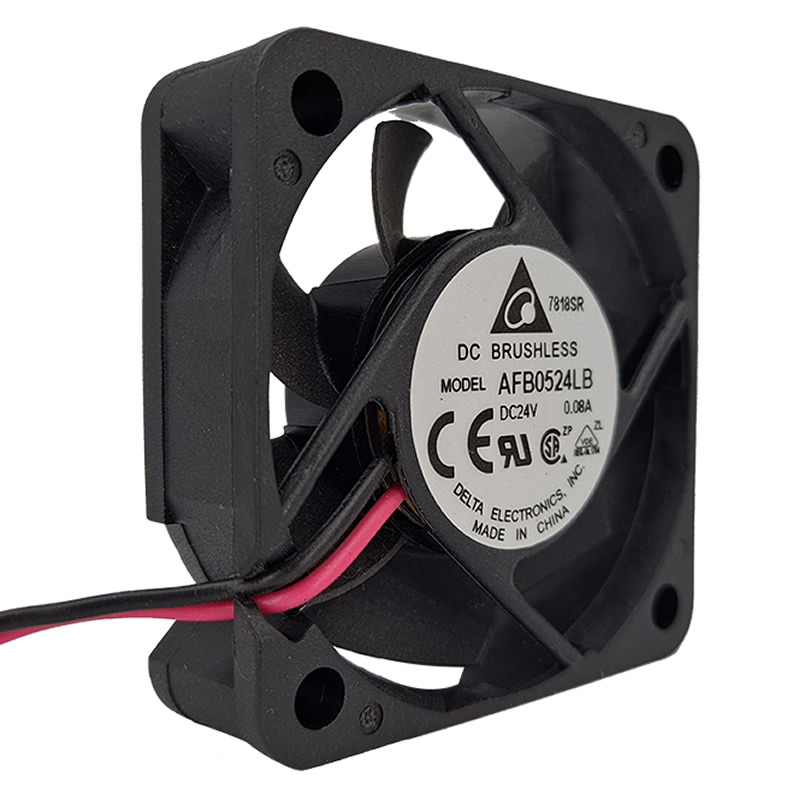

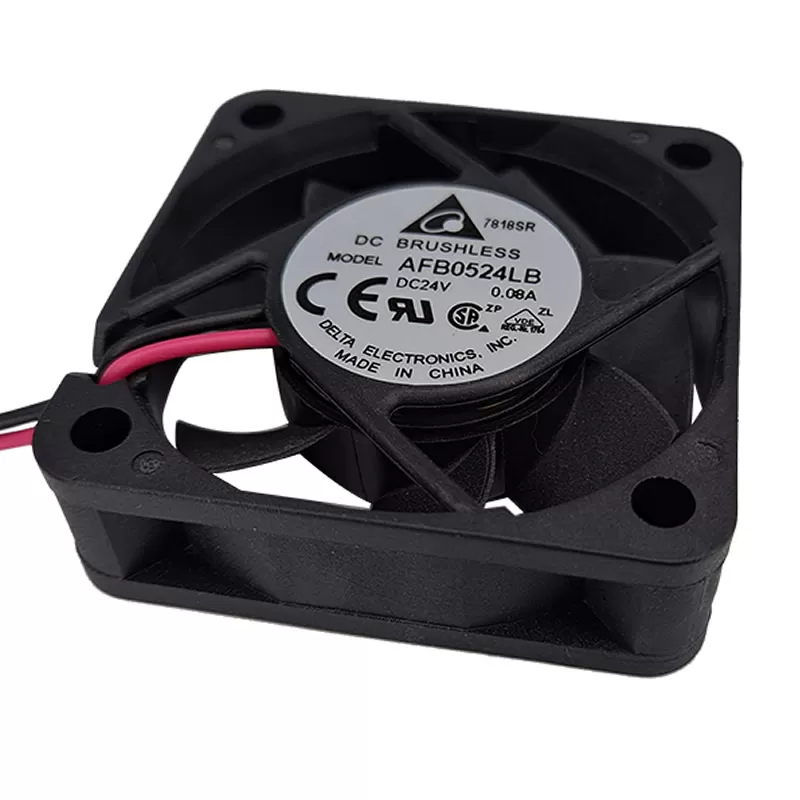

AFB0524LB Delta 24VDC 50x50x15mm 9.9CFM 0.126inH2O(31.4Pa) Ball 24dB(A) 1.2W 4000RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0524LB |
|---|---|
| Manufacturer | Delta Electronics |
| Series | AFB |
| Voltage Rating | 24 VDC |
| Dimensions | 50x50x15 mm |
| Air Flow | 9.9 CFM |
| Air Flow (m3) | 0.277 m³/min |
| Static Pressure | 0.126 in H2O (31.4 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | Locked Rotor Protection |
| Noise Level | 24 dB(A) |
| Power Rating | 1.2 W |
| Fan Speed | 4000 RPM |
| Termination | 2 Wire Leads |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.071 lb (32.21 g) |
