Description

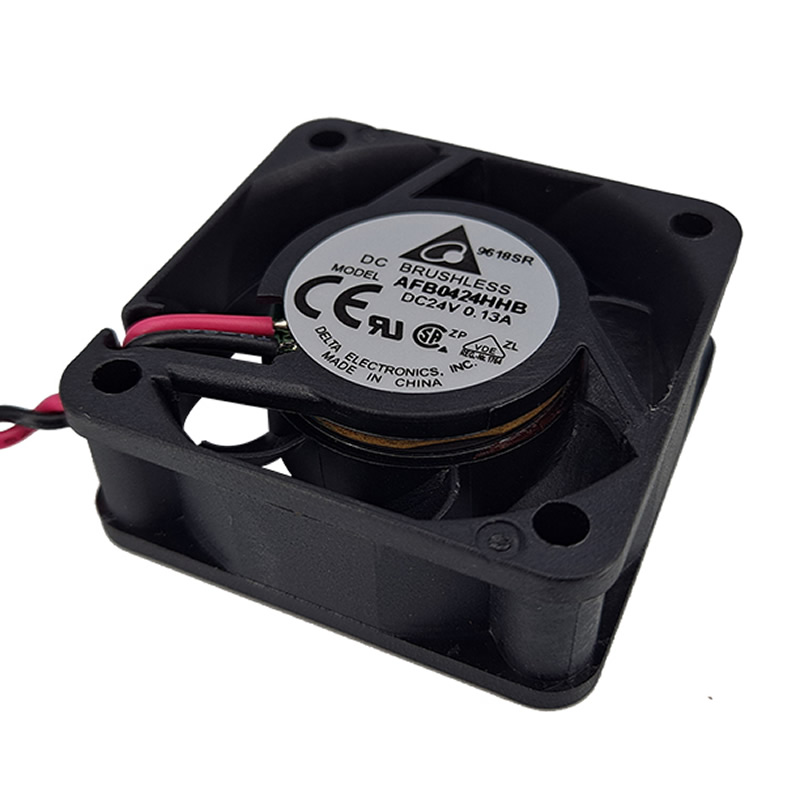

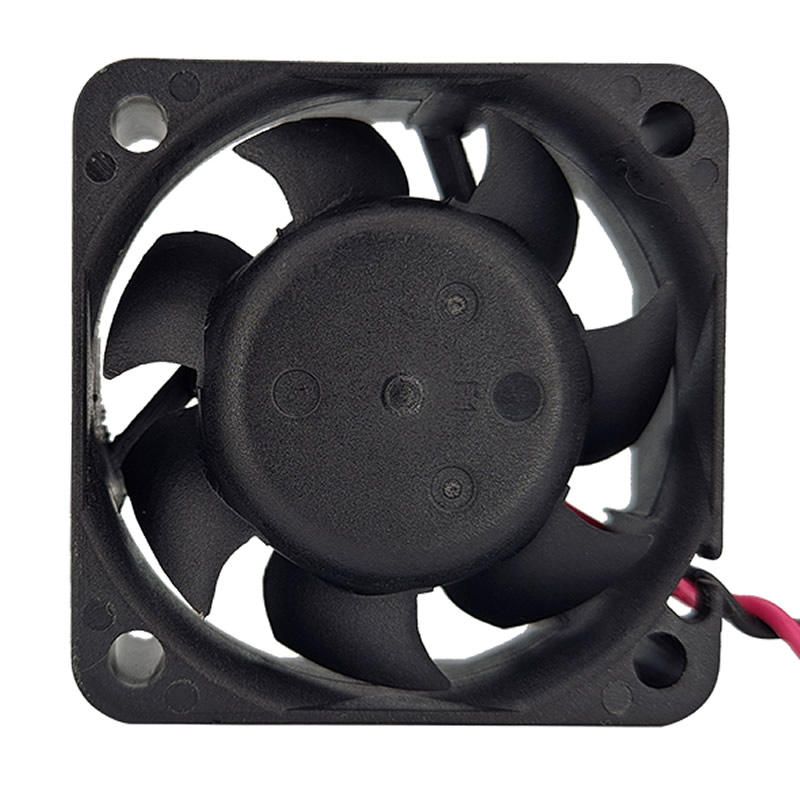

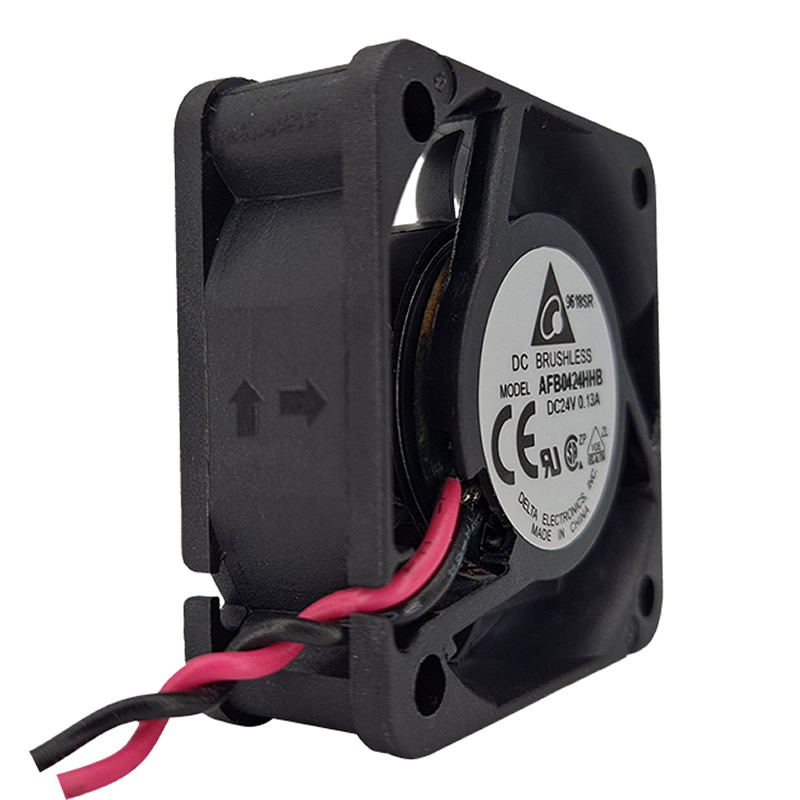

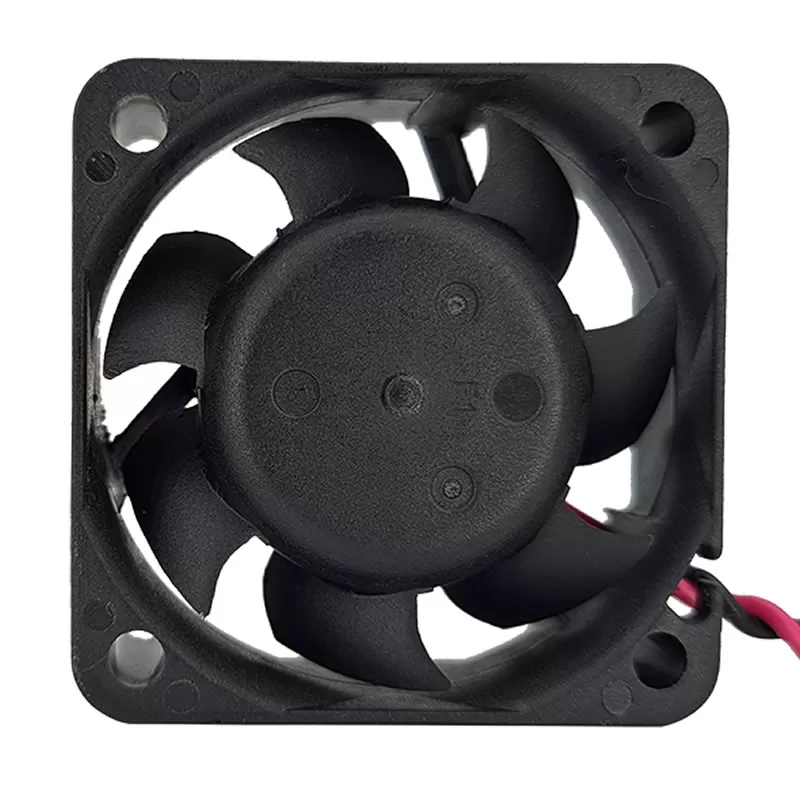

AFB0424HHB Delta 40x40x15mm Ball 24VDC 11.48CFM(0.325m3/min) 0.359inchH2O(9.13mmH2O) 32.0dB(A) 2.16W 8300RPM 2wireleads fan
Specifications
| Part Number | AFB0424HHB |
|---|---|
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.325 m3/min |
| Dimensions | 40x40x15 mm |
| Termination | 2 wire leads |
| Fan Speed | 8300 RPM |
| Power Rating | 2.16 W |
| Noise Level | 32.0 dB(A) |
| Static Pressure | 0.359 inchH2O (9.13 mmH2O) |
| Air Flow | 11.48 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.057 lb (25.85 g) |
| Category | Axial |
| Current Rating | 0.09 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
