Description

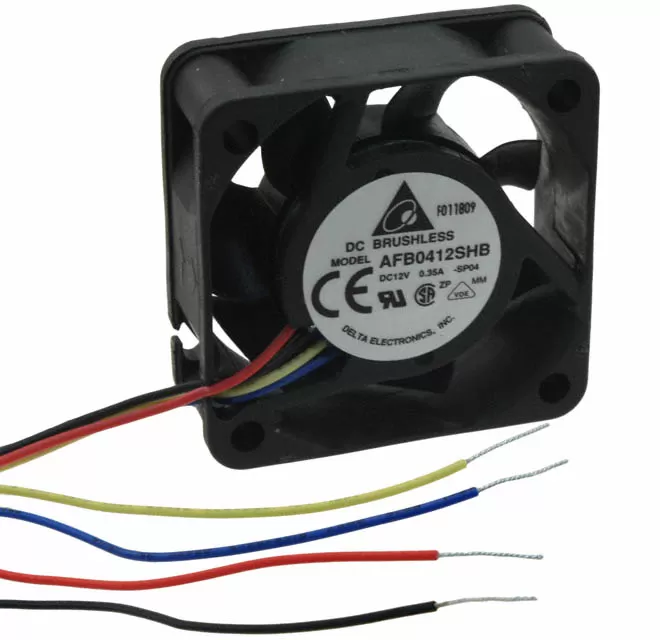

AFB0412SHB-T500 Delta 40x40x15mm Ball 12VDC 14.83CFM(0.420m3/min) 0.601inchH2O(15.26mmH2O) 41.5dB(A) 3.00W 11000RPM 2wireleads
Specifications
| Part Number | AFB0412SHB-T500 |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| IP Rating | IP55 |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.420 m3/min |
| Dimensions | 40x40x15 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 11000 RPM |
| Power Rating | 3.00 W |
| Noise Level | 41.5 dB(A) |
| Static Pressure | 0.601 inchH2O (15.26 mmH2O) |
| Air Flow | 14.83 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.057 lb (25.85 g) |
| Category | Axial |
| Current Rating | 0.25 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
