Description

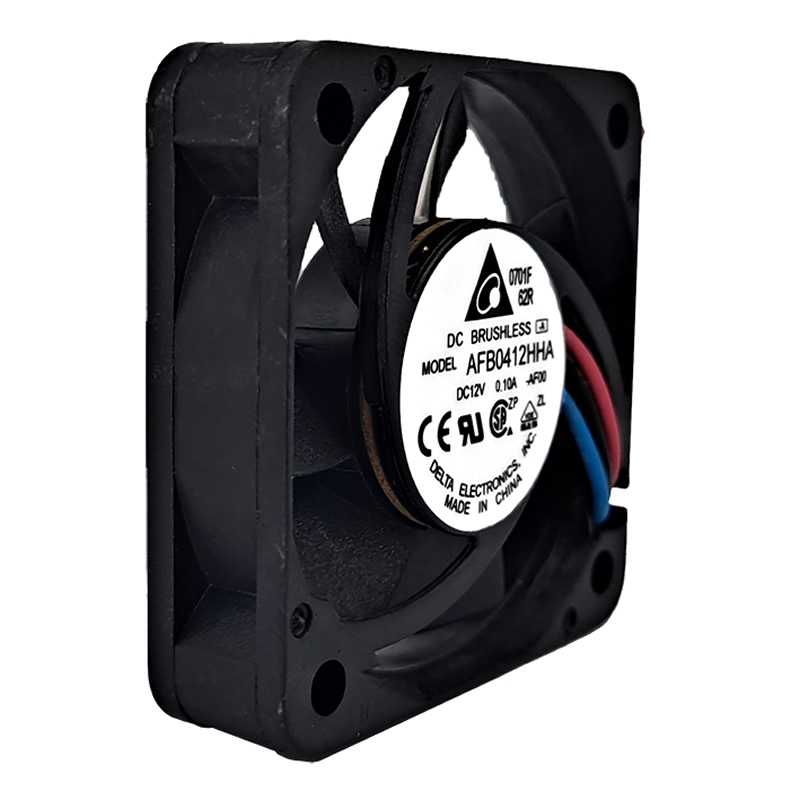

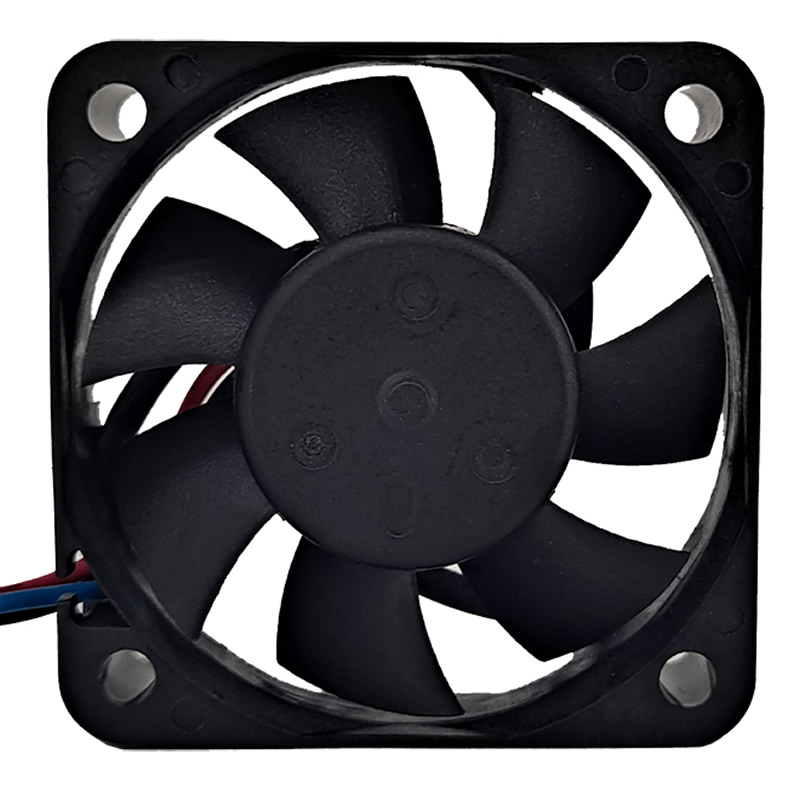

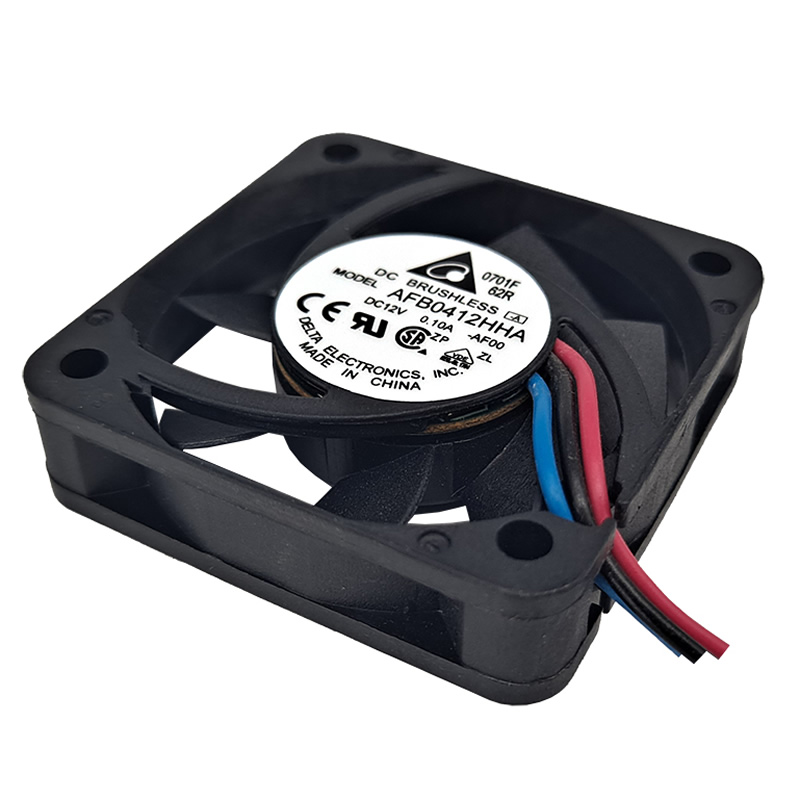

AFB0412HHA-AF00 Delta 40x40x10mm Ball 12VDC 8.15CFM(0.231m3/min) 0.190inH20(4.831mmH2O) 31.5dB(A) 0.60W 7000RPM 3wireleads
Specifications
| Part Number | AFB0412HHA-AF00 |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | AFB |
| Air Flow (m3) | 0.231 m3/min |
| Dimensions | 40x40x10 mm |
| Termination | 3 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 7000 RPM |
| Power Rating | 0.60 W |
| Noise Level | 31.5 dB(A) |
| Static Pressure | 0.190 inH20 (4.831 mmH2O) |
| Air Flow | 8.15 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.031 lb (14.06 g) |
| Category | Axial |
| Current Rating | 0.05 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
