Description

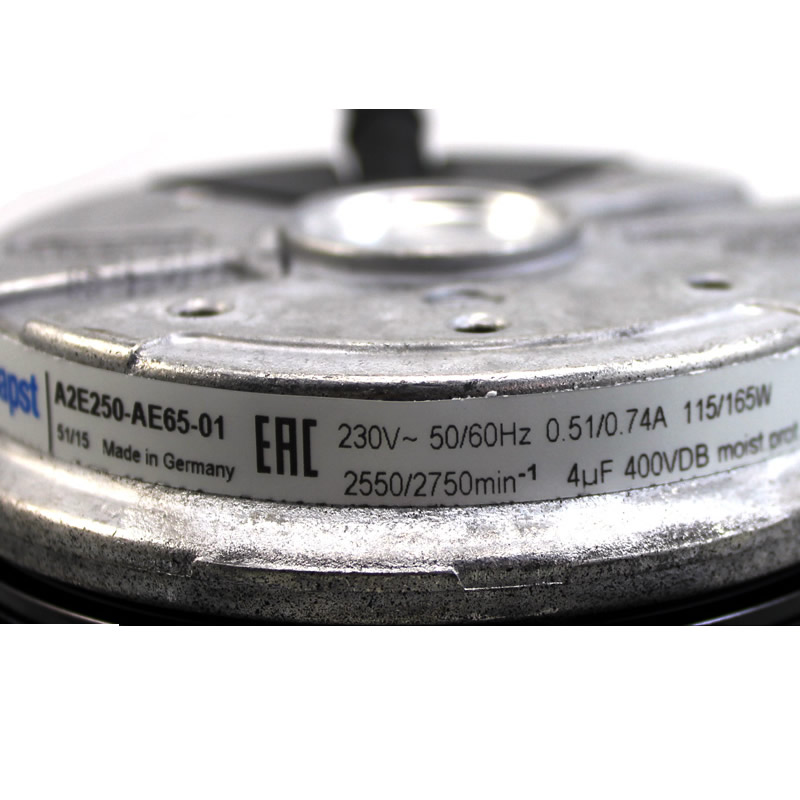

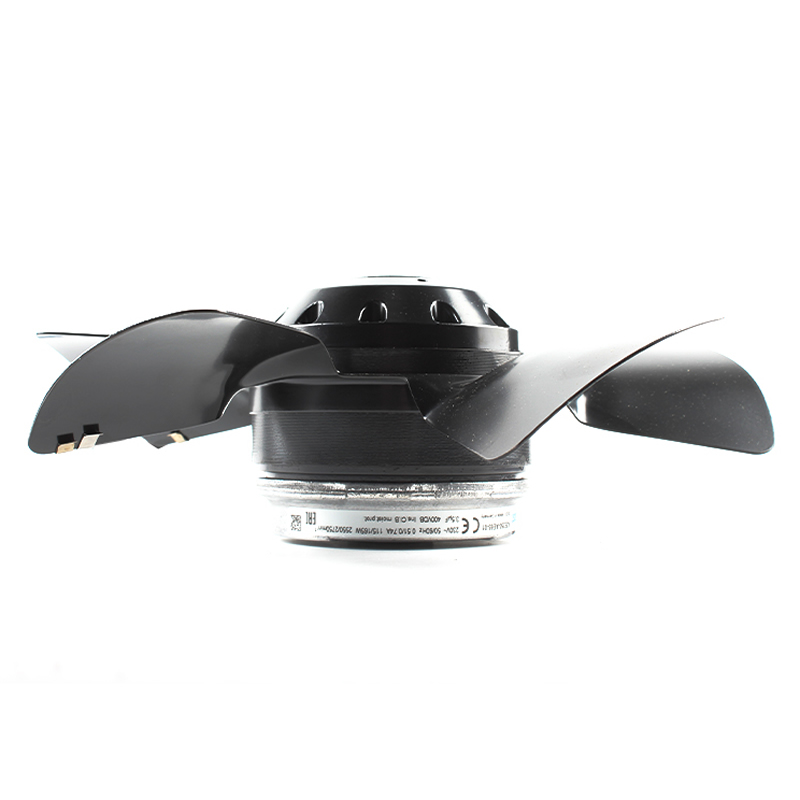

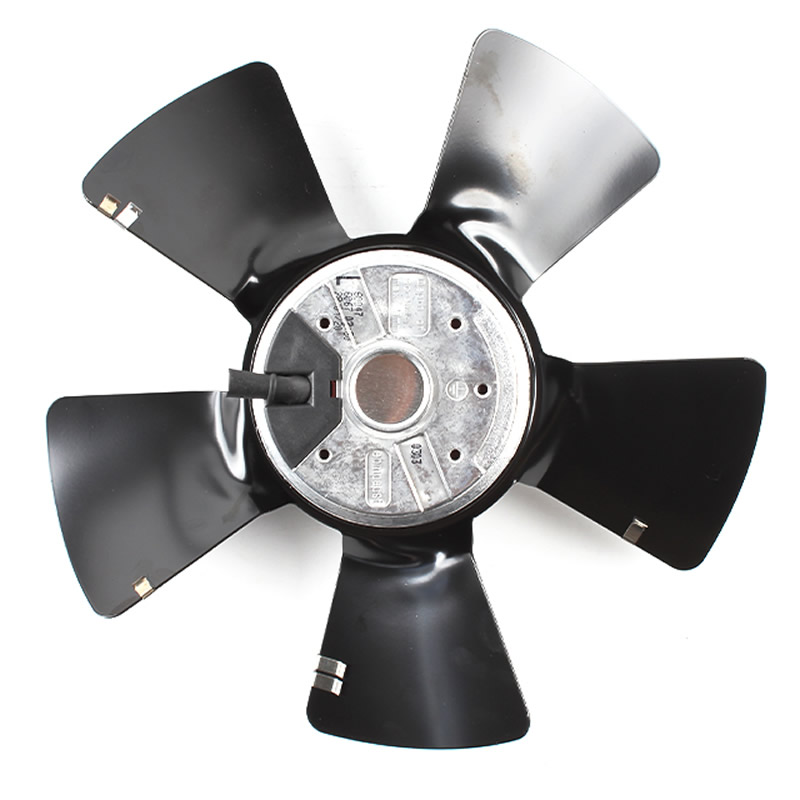

A2E250-AE65-01 ebmpapst 230VAC 250×84.50mm 948.3CFM Ball 72dB(A) 165W 2750RPM IP44 4 Wire Leads with Splice Terminals Tubeaxial Capacitor Thermal Overload Protector (TOP) AC Axial Fan
Specifications
| Part Number | A2E250-AE65-01 |
|---|---|
| Manufacturer | ebm-papst |
| Series | A2E250 |
| Fan Type | AC |
| Voltage Rating | 230 VAC |
| Dimensions | 250×84.50 mm |
| Air Flow | 948.3 CFM |
| Air Flow (m3) | 26.55m³/min |
| Static Pressure | 0.522 in H2O (130.0 Pa) |
| Bearing Type | Ball Bearing |
| category | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Noise Level | 72 dB(A) |
| Power Rating | 165 W |
| Fan Speed | 2750 RPM |
| Termination | 4 Wire Leads with Splice Terminals |
| IP Rating | IP44 |
| Operating Temperature | -13 ~ 122°F (-25 ~ 50°C) |
| Approval Agency | CCC, CE, EAC |
| Number of blades | 5 |
| Subcategory | AC axial fan |
