Description

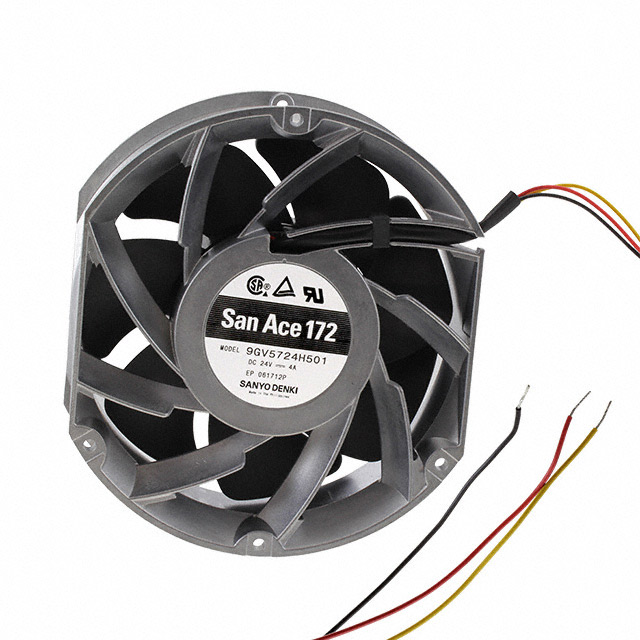

9GV5724H501 Sanyo Denki San Ace 172 DC 24VDC 172x150x51mm 400CFM Ball 74dB(A) 96W 6300RPM 3 Wire Leads Speed Sensor (Tach) Tubeaxial fan
Specifications
| Part Number | 9GV5724H501 |
|---|---|
| Manufacturer | Sanyo Denki |
| Fan Type | DC |
| Series | San Ace 172 |
| Voltage Rating | 24 VDC |
| Dimensions | 172x150x51 mm |
| Air Flow | 400 CFM |
| Air Flow (m3) | 11.20m³/min |
| Static Pressure | 2.770 in H2O (690.0 Pa) |
| Bearing Type | Ball Bearing |
| Features | Speed Sensor (Tach) |
| Noise Level | 74 dB(A) |
| Power Rating | 96 W |
| Fan Speed | 6300 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 1.8 lb (800.0 g) |
| Subcategory | Tubeaxial |
