Description

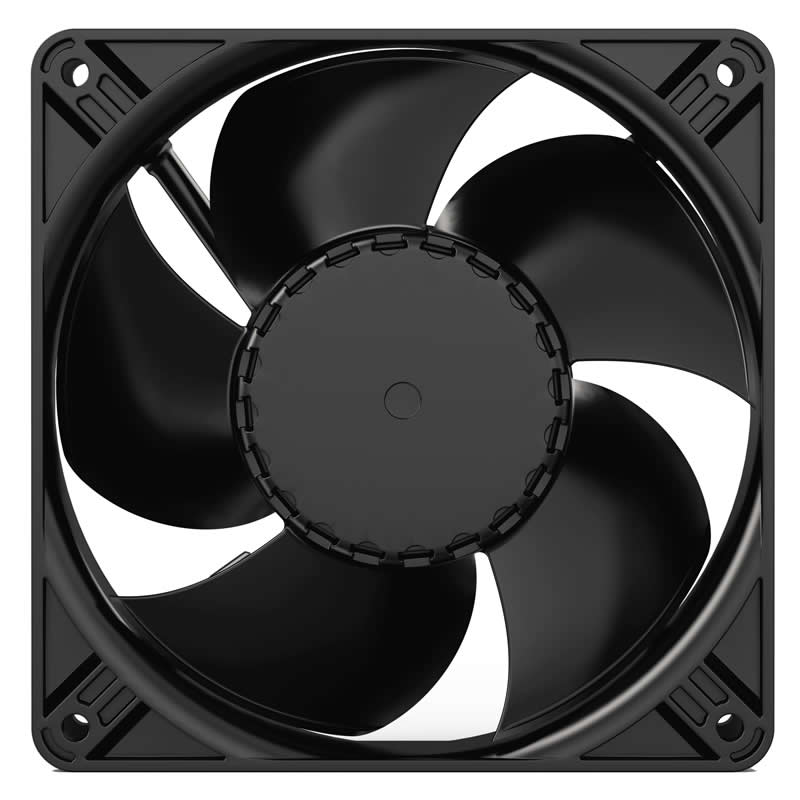

8315100205 VWCF119DSGHS AxiACi120-00205 ebmpapst 119x119x38.15mm 115/230VAC 0.019A 1.10W 37.8CFM 31.8Pa 20dB(A) 1500RPM IP65 2 Wire Leads Ball Bearing axial fan
Specifications
| Part Number | 8315100205 |
|---|---|
| Type | VWCF119DSGHS |
| Model | AxiACi120-00205 |
| Manufacturer | ebm-papst |
| Series | AxiACi |
| Fan Type | AC |
| Voltage Rating | 115/230 VAC |
| Dimensions | 119x119x38.15 mm |
| Air Flow | 37.8 CFM |
| Air Flow CMM | 1.07 m³/min |
| Static Pressure | 0.128 in H2O |
| Static Pressure Pa | 31.8 Pa |
| Bearing Type | Ball Bearing |
| Category | Tubeaxial |
| Features | Auto Restart, Locked Rotor Protection |
| Noise Level | 20 dB(A) |
| Power Rating | 1.10 W |
| Fan Speed | 1500 RPM |
| Termination | 2 Wire Leads |
| IP Rating | IP65 |
| Operating Temperature | -40 ~ 167°F (-40 ~ 75°C) |
| Approval Agency | CCC, CE, CSA, EAC, UL, VDE |
| Current Rating | 0.019 A |
| Operating Voltage | 100 ~ 240 VAC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | Varies Based on Temperature |
| RoHS Status | ROHS3 Compliant |
| ECCN | EAR99 |
