Description

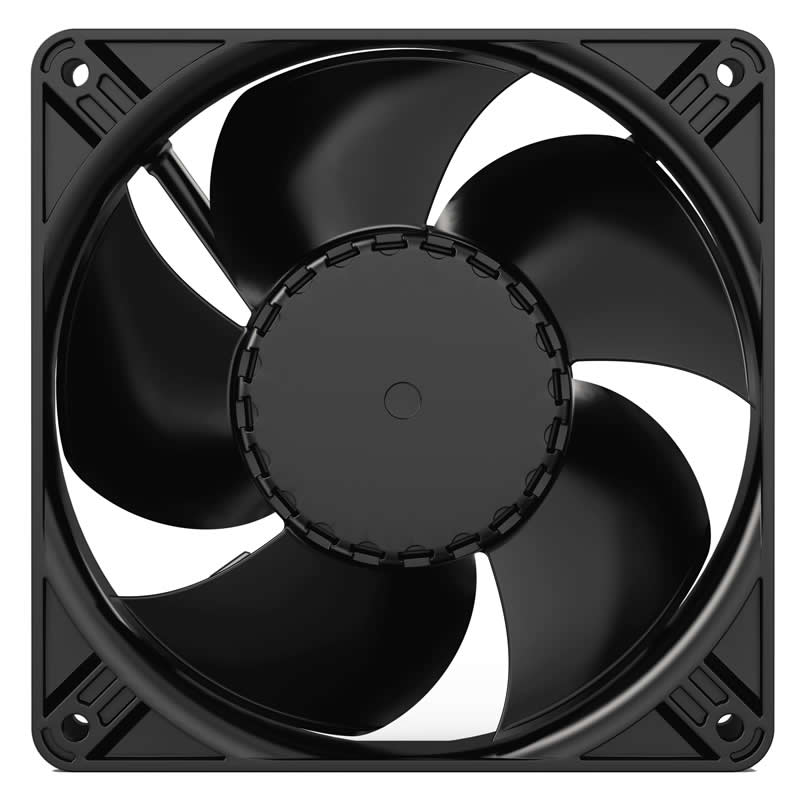

8315100190 VWCF119DSGLS AxiACi120-00190 ebmpapst 119x119x38.15mm 115/230VAC 0.058A 3.60W 94.2CFM 102Pa 40dB(A) 3000RPM IP65 2 Wire Leads Ball Bearing axial fan
Specifications
| Part Number | 8315100190 |
|---|---|
| Type | VWCF119DSGLS |
| Model | AxiACi120-00190 |
| Manufacturer | ebm-papst |
| Series | AxiACi |
| Fan Type | AC |
| Voltage Rating | 115/230 VAC |
| Dimensions | 119x119x38.15 mm |
| Air Flow | 94.2 CFM |
| Air Flow CMM | 2.64 m³/min |
| Static Pressure | 0.409 in H2O |
| Static Pressure Pa | 102 Pa |
| Bearing Type | Ball Bearing |
| Category | Tubeaxial |
| Features | Auto Restart, Locked Rotor Protection |
| Noise Level | 40 dB(A) |
| Power Rating | 3.60 W |
| Fan Speed | 3000 RPM |
| Termination | 2 Wire Leads |
| IP Rating | IP65 |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CCC, CE, CSA, EAC, UL, VDE |
| Current Rating | 0.058 A |
| Operating Voltage | 100 ~ 240 VAC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | Varies Based on Temperature |
| RoHS Status | ROHS3 Compliant |
| ECCN | EAR99 |
